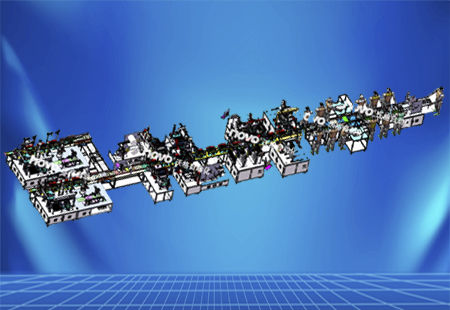

Automatic assembly line for lighting
Add to favorites
Compare this product
Characteristics
- Operating mode
- automatic
- Applications
- for lighting
Description
This production line is a key equipment in the production of backlight, with automatic assembly of reflector, automatic assembly of light guide plate, automatic cleaning of light guide plate, automatic adhesion of film, Tape, AOI detection, automatic laminating, CT is 6s.
The device is suitable for 10.1 to 15.6 inch backlight components.
2~4 tapes are attached on the short side
Long side adhesive tape 1~2 lines
External dimension: 22000mm (length) x4500mm (width) x1800mm (height)
Weight: 4000 kg
Power distribution: AC220V, 66KW (details refer to →)
Compressed air: 0.5~ 0.7mpa, ≥800L/min
Vacuum: - 85 Kpa or less
CT: 6 s
Assembly accuracy: ±0.15mm
1. The reflector is automatically grouped
2. Light guide plate is automatically assembled
3. The light guide plate is automatically cleaned
4. Film is automatically attached
5. Tape automatically attached
6. AOI test
7. Automatic film coating
