Pipe-flaring machine
Add to favorites
Compare this product
Description

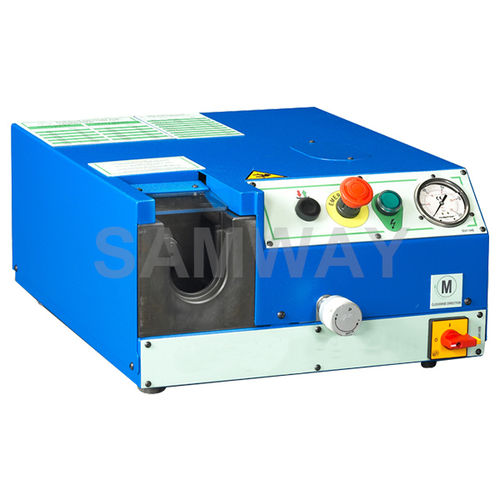

Tube Flaring Machine
Feature description：
● 37° 90° Flaring
Main Specification
- SAMWAY 37 DEGREE FLARING
PRE-ASSEMBLING
- 6 > 42x4 mm (0.236">1.654"x0.158")
37 FLARING
- 6X4 > 42x4 mm (0.236"x0.158">1.654"x0.158")
MATERIALS
- AISI 316 TI - ST 37.4
WEIGHT
- 58 KG (128 Lbs)
DIMENSIONS L x W x H
- 430x600x270 mm (16.929"x23.622"x10.630")
STANDARD VOLTAGE
- 400V 50HZ 3PH
MOTOR POWER
- 0.75 Kw (1 Hp)
OIL
- incl.
37 FLARING BLOCK
- OPTIONAL
TOOL HOLDER
- OPTIONAL
12V VOLTAGE
- OPTIONAL
SPECIAL VOLTAGE
- OPTIONAL
