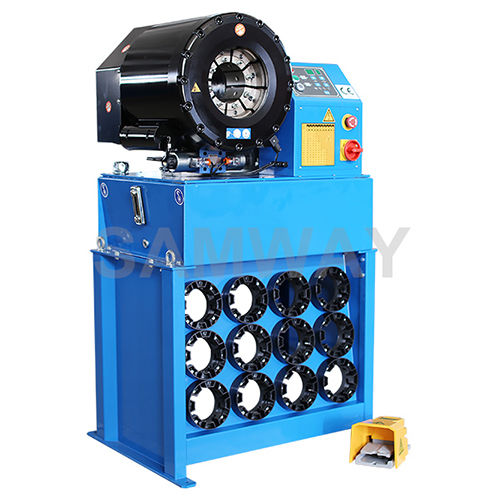

Hydraulic hose crimping machine P51D
automaticfoot-operatedPLC-controlled

Hydraulic hose crimping machine - P51D - WUXI SAMWAY CO.,LTD - automatic / foot-operated / PLC-controlled
Hydraulic hose crimping machine - P51D - WUXI SAMWAY CO.,LTD - automatic / foot-operated / PLC-controlled
Add to favorites
Compare this product


Characteristics

Product handled
hydraulic hose
Operational mode
automatic
Drive type
foot-operated
Other characteristics
PLC-controlled, high-capacity
Crimping force

3,800 kN

Crimping capacity

Min.: 4 mm
(0.2 in)

Max.: 101.6 mm

Description

Feature description: ● Digital Precision Control ● Quick Change Tool and Die rack ● Energy Saving and Safety Operation ● TUV CE Approved SAMWAY P51D 4’’ Hose Crimping Machine The Heavy Duty 4’’ Hose Crimping Machine for all hydraulic hose up to 4’’ or industrial hose up to 4’’. Digital Control makes the hydraulic hose assembly easier more simple and precision. Samway P51D come with the quick change tool and die rack complete with die sets for hydraulic hose. Optional die sets for the Industrial Hose. Samway P51D is an precision workshop hose crimping machine for high standard high quality hydraulic hose assembly and industrial hose up to 4’’. Please contact SAMWAY for more details of Samway Hose Crimping Machines. www.samway.com for more details. Main Specification - SAMWAY P51D Max Hydraulic Hose - 3"4SP Industrail Hose - 4" Crimping Range mm - 4-140 Die Type - P32 Master Die Length mm - 100 Max Opening mm - +40 Motor KW - 4 Crimping Force KN - 3800 Crimpings Per Hour - 900 Control - Digital Control Foot pedal - Included Die Rack - Included Quick Change Tool - Included Backstop Device - Optional Control by Pressure - Optional Noise Level dBA - 65 Protection Class - IP56 L*W*H mm - 760*650*1520 Weight KG - 450
