Fuel hose SAE 100R7-EN855 R7thermoplasticpolyurethanepolyester
Add to favorites
Compare this product
Characteristics
- Use
- for fuel
- Material
- thermoplastic, polyurethane, polyester
- Other characteristics
- abrasion-resistant, oil-resistant, weather-resistant, braided
- Inner diameter
5 mm, 6 mm, 8 mm, 10 mm, 13 mm
(0.197 in, 0.236 in, 0.315 in, 0.394 in, 0.512 in)- Outer diameter
9.5 mm, 11.9 mm, 14.3 mm, 16.5 mm, 20.4 mm
(0.374 in, 0.469 in, 0.563 in, 0.65 in, 0.803 in)- Pressure
Max.: 207 bar
(3,002.281 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 93 °C
(199.4 °F)Min.: -40 °C
(-40 °F)
Description

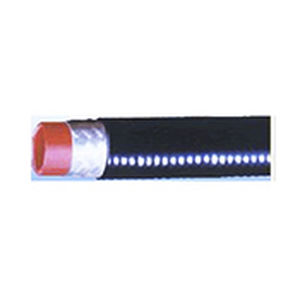

Two Polyester Braid Hose (SAE 100R7-EN855 R7)
Feature description：
● Inner Tube：Thermoplastic Polyester
● Reinforcement : Two High Tenacity Polyester
Braids Reinforcement
● Cover:Oil,Fuel, Weather,Ozone And Abrasion
Resistant Thermoplastic Polyurethane
● Temperature Range：-40℃～+93℃
● Insert： xxxx1S-xx-xxSe
