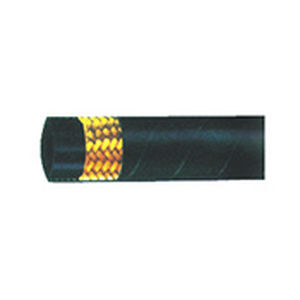

Oil hose SAE 100R1ATsyntheticsteel
Add to favorites
Compare this product
Characteristics
- Use
- for oil
- Material
- synthetic, steel
Description
Feature description：
● Inner Tube：Oil Resistant Synthetic Rubber；
● Reinforcement：One Steel Wire Braid Reinforcement；
● Cover：Oil And Weather Resistant Synthetic；
● Temperature Range：-40℃～+100℃；
● Insert： xxxx1-xx-xxSeries
Technical Parameters:
HOSEDNHOSE SIZEHOSE I.D.HOSE O.D.MAX W.P.MIN.BURST PRESUREMIN.BEND.RADIUSFERRULE
PART NO.mmDASHInchmmmmMPaMPamm
1T046-041/4"6.413.419.075.8102S00110-04A
1T058-055/16"7.915.017.268.9114S00110-05A
1T0610-063/8"9.517.415.562.0127S00110-06A
1T0813-081/2"12.720.613.855.2178S00110-08A
1T1016-105/8"15.923.710.341.4203S00110-10A
1T1219-123/4"1927.78.634.5241S00110-12A
1T1625-161"25.435.66.927.6305S00110-16A
1T2032-201.1/4"31.843.54.317.2419S00110-20A
1T2438-241.1/2"38.150.63.413.8508S00110-24A
1T3251-322"50.864.12.610.3635S00110-32A
