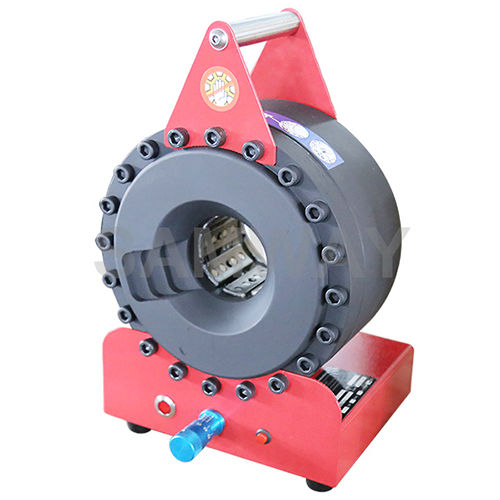

Hydraulic hose crimping machine P18HP
manualhydraulicportable

Hydraulic hose crimping machine - P18HP - WUXI SAMWAY CO.,LTD - manual / hydraulic / portable
Hydraulic hose crimping machine - P18HP - WUXI SAMWAY CO.,LTD - manual / hydraulic / portable
Add to favorites
Compare this product


Characteristics

Product handled
hydraulic hose
Operational mode
manual
Drive type
hydraulic
Other characteristics
portable
Crimping force

1,200 kN

Crimping capacity

Max.: 25.4 mm

Min.: 4 mm
(0.2 in)

Description

Feature description: ● Portable 1" 4SP Crimper ● No electricity required ● Enerpac Hand Pump ● Complete Die Set Main Specification - SAMWAY P18HP Max Hydraulic Hose - 1" 4SP Crimping Range mm - 4-60 Die Type - P18 Master Die Length mm - 64 Max Opening mm - +20 Hand Pump - Enerpac two stage pump 700 bar Crimping Force KN - 1200 Control - Micro Dail L*W*H mm - 360*430*350 Weight KG - 40
