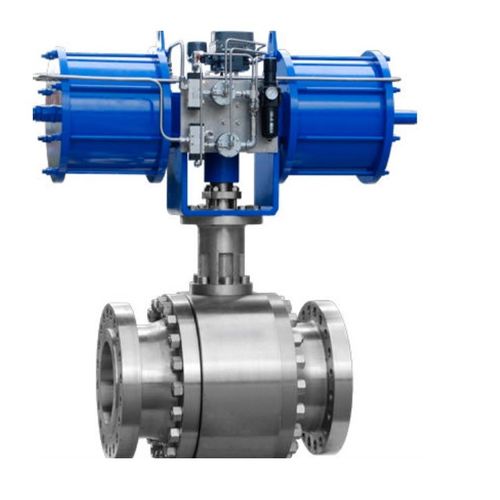

Ball valve R5

pneumatically-operatedelectrically-actuatedfor control

R5 series three piece ball valve are of fixed ball structure. Through the design of the flow pass, the fluid pressure loss is reduced to a minimum level. Typical application: shutting off service of liquid, gas and slurry. Soft seal, hard seal, metal seal are all available. Fireproof certificated as per API607 fourth edition and code of 6FA. The leakage level can be of class V or VI, through a special process method, class VI for bi-direction can be met. QRZ series rack pinion type quarter turn pneumatic actuator is a good partner for R5 series valve, while EMR series of electric actuator is an electric force. R5 series are also available with bonnet extension type, cryogenic and jacket type. Cv 21~59500 Application Liquid, gas, slurries and so on Features Three piece of valve body from forging,fixed ball and low torque,featured fire safety and electrostatric prevention,especially suit for shut-off or control application with high temperature and high pressure medium
