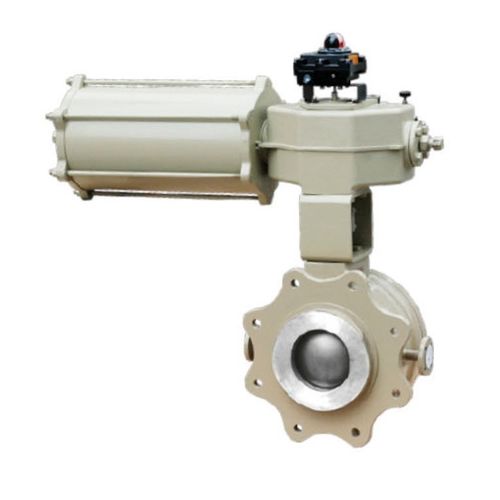

Ball valve RA electrically-actuatedfor controlshut-off
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Function
- for control, shut-off
- Media
- for sludge, for gas
- Applications
- flange, liquids, tank bottom
- Other characteristics
- compact
- DN
Max.: 350 mm
(13.78 in)Min.: 80 mm
(3.15 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 1.6 bar
(23.2 psi)- Temperature
Max.: 650 °C
(1,202 °F)Min.: -46 °C
(-51 °F)
Description
RA series valve came with a special tank bottom flange, smooth tapered bore and a short way of the ball to the bottom of the vessel can prevent accumulation of medium at the entrance of the valve.Typical application: discharge control of high viscosity, easy to crystallization material.
Cv
21~28300
Application
Liquid, gas, slurries and so on
Features
Compact,excellent seal performance and no inner or inlet dead zone in flow path that can be well used for shut-off application with high viscosity or crystal medium.
