Globe valve M2/E2

pneumatically-operatedelectrically-actuatedfor gas

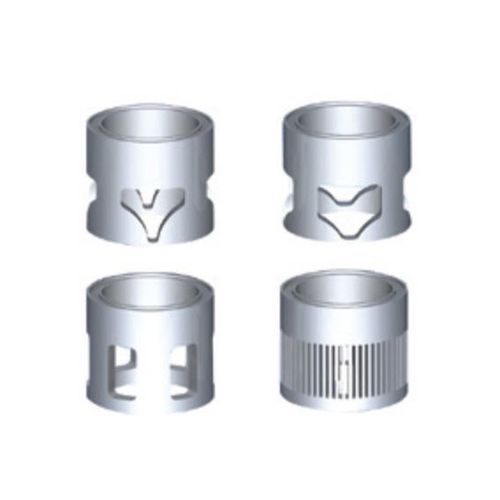

M2/E2 series valve, are of balanced trim and cage guided design. Much smaller peration force is required compared with P2 for same pressure difference. Better dynamic stability than P2 series.The “window" of different flow haracteristics on the cage also plays the roles of noise reduction.Suitable for medium without solid particles. The actuator for M2/E2 series can be QLM series sliding pneumatic type or EML series electric type. M2/E2 series are also available with bonnet extension type, bellows seal type and jacket type. Cv 17~6850 Application Clean gas or liquid medium with middle and low pressure, especially suit for temperature over 250℃. Features Fine dynamic stability, can be worked in the high pressur drop process and characteristic is optional.
