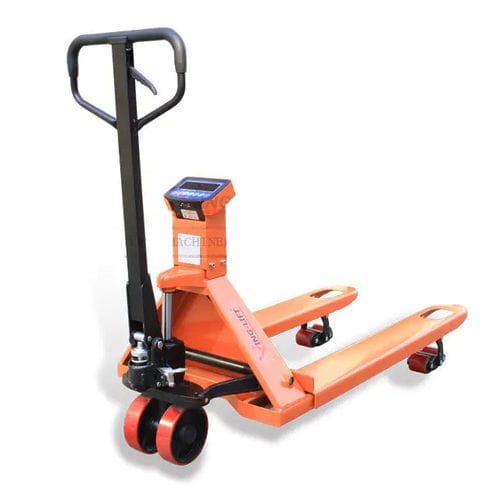

Weight indicator pallet truck YLD20/44P series

handscalecompact

Mobile Weight Cart/Scale Pallet Truck YLD20/44P series 1.High accuracy with fixed load cell. 2.Long term reliability from a single circuit board with any extra connectors. 3.Lower power consumption，auto shut off. 4.Summation of weights with sequence number.Auto tare. 5.Accuracy 0.1% of the weight applied to the scale.1kg graduation. 6.Optional thermal printer integrated with the housing. 7.Small and compact electronics specially developed for mobile weighing. Model - YLD20/YLD44P - YLD20-1/YLD44P-1 - YLD25/YLD55P - YLD25-1/YLD55P-1 Printer - without/with - without/with - without/with - without/with Load Capacity - kg/lb - 2000/4400 - 2000/4400 - 2500/5500 - 2500/5500 Min. Fork Height - mm - 75 - 75 - 75 - 75 Max. Fork Height - mm - 200 - 200 - 200 - 200 Fork Length - mm - 1150 - 1220 - 1150 - 1220 Overall Forks Width - mm - 540 - 680 - 540 - 680 Individual Fork Width - mm - 160 - 160 - 160 - 160 Graduation - kg - 1 - 1 - 1 - 1 Weighing Accuracy - % - 0.1 - 0.1 - 0.1 - 0.1 Net weight - kg - 117/118 - 120/121 - 120/121 - 123/124
