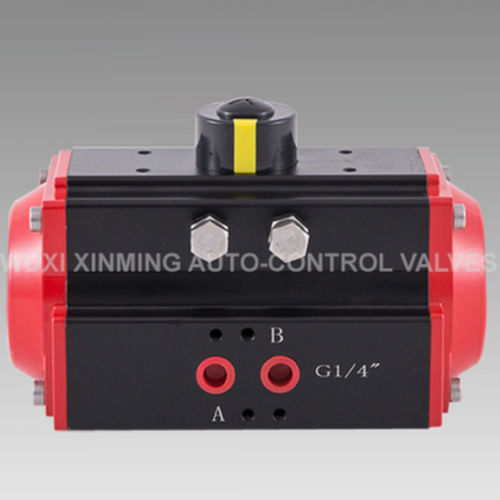

Pneumatic ball valve actuator XM-AT105
compactball

pneumatic ball valve actuator
pneumatic ball valve actuator
pneumatic ball valve actuator
pneumatic ball valve actuator
pneumatic ball valve actuator
pneumatic ball valve actuator
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Other characteristics
ball, compact
Torque

Min.: 4 Nm
(2.95 ft.lb)

Max.: 12,992 Nm
(9,582.41 ft.lb)

Pressure

Min.: 2.5 bar
(36.3 psi)

Max.: 8 bar
(116 psi)

Ambient temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

DA(Double Action) and SP(Spring Return) Pneumatic Actuator are mainly used for the automatic control of Ball Valves and Butterfly Valves. With unique style, advanced technology, precision manufacturing, and economical compact mode design, XM series Pneumatic Actuator can be equipped other accessories directly to improve the efficiency and economy. -Using air source: the clear air after drying, filtering or lubricating, non corrosive gas.
