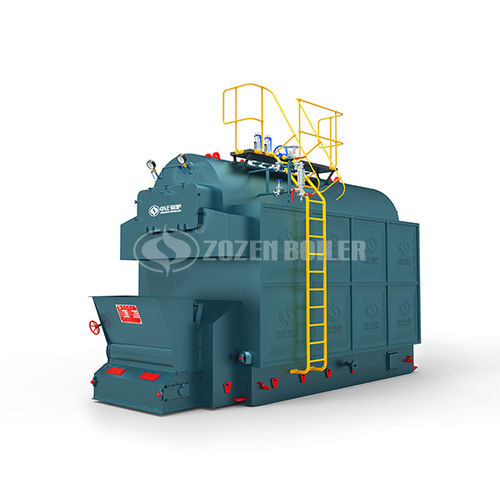

Steam boiler DZL series

biomassfire tubewater tube

DZL series biomass-fired steam boiler Steam • Product thermal capacity: • 2 – 20t/h • Working pressure: • 1 - 2.5 MPA • Outlet temperature: • 170-225 ℃ • Available fuel: • Biomass particles • Available industries: • Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital Introduction DZL series package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection. Technical advantages • CNC manufacturing technology • The key processing technologies such as steel plate blanking, circling, drum and tube plate drilling adopt advanced CNC machining to reduce the assembly stress and prolong the service life of the boiler. • Steel tube cutting, thread tube pressing and convection tube processing all adopt advanced CNC technology. • Arched tube sheets and threaded fire tube was first adopted in China to increase heat transfer and completely solve the problem of cracking of the back tube sheet. • Chain grate plate and back smoke chamber plate is cut by CNC plasma cutting machine, which looks neat and beautiful.
