Hot water boiler SZL series

biomassfire tubewater tube

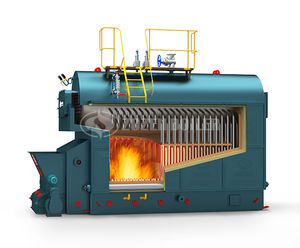

SZL series biomass-fired hot water boiler Hot water Product thermal capacity: 2.8-29 MW Working pressure: 1.0-1.25 MPA Outlet temperature: 95/70℃, 115/70℃ Available fuel: Biomass molding granules, wood chip, corn cob, saw dust Available industries: Heating, hotels, schools, hospitals Introduction SZL series biomass-fired hot water boiler is package or shop-assembled water pipe boiler with double steam drum and chain grate stoker structure. 4-6 tph boiler is package boiler and 6-35 tph is shop-assembled structure, which is composed of 2 parts, upper part is heat absorbing surface and lower part is combustion equipment. The former part of boiler body is surrounded by membrane wall, its upper part connects with boiler drum and lower part connects with header, which forms a combustion chamber to absorb the radiated heat from furnace; there are dense convection tube bundle between the back side of upper and lower drum, the high temperature smoke enters a separate economizer after flushing heat absorbing surface then discharge from chimney. Technical advantages • CNC manufacturing technology • The key processing technologies such as steel plate blanking, circling, drum and tube plate drilling adopt advanced CNC machining to reduce the assembly stress and prolong the service life of the boiler. • Steel tube cutting, thread tube pressing and convection tube processing all adopt advanced CNC technology. • Automatic production line.
