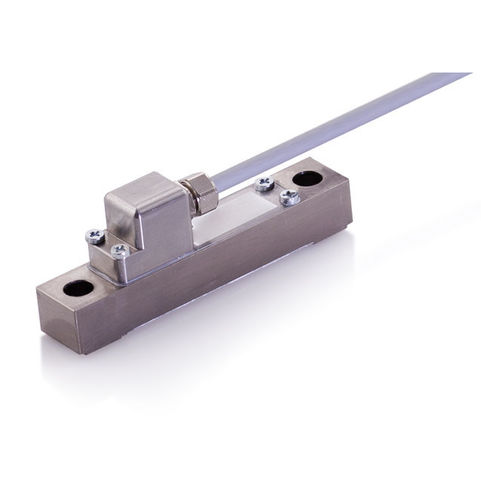

Strain sensor for static applications X-113-H07-3

2 screwsnarrowwith integrated amplifier

Very small strain sensor with integrated amplifier Narrow dimensions with two mountings screws Measuring range: 0…440 µm/m For static applications Measuring very small strains in rigid structures With integrated amplifier with ± 10 V or 4-20 mA For weight, level, force and construction monitoring Surface strain sensor X-113-H07 monitors the strain between its two mounting screws and amplifies this mechanically. In this way the strain is concentrated in the measuring area and can therefore be measured using a resistive strain gauge bridge. The integrated low-noise amplifier raises the signal to an easily handled standard industrial output level. The solid steel body and sealed construction (IP67) guarantees trouble-free installation even under harsh environmental conditions.
