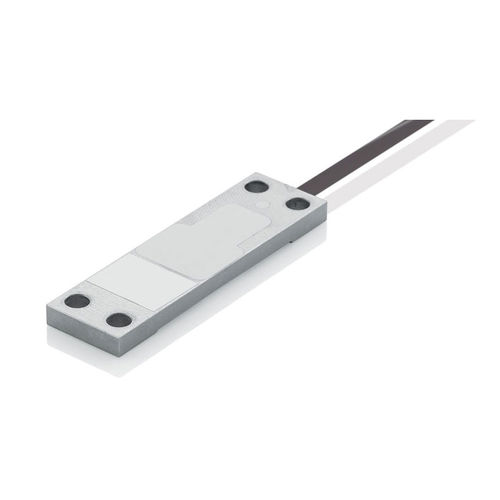

Strain sensor for dynamic applications X-103-S30

for static applications4-screwflat

Strain sensor for measuring very small deformations at rigid structures Very flat design with only 6.5 mm height 0…250 µm/m measuring range Very high sensitivity and resolution Strain sensor with mV/V-output (DMS measuring bridge) For static and dynamic applications For force, weight and deformation measurements Measuring very small strains in rigid structures Surface strain sensor X-103 monitors the strain between its two mounting screws and amplifies this mechanically. In this way the strain is concentrated in the measuring area and can therefore be measured using a resistive strain gauge bridge. These strain sensors are used if the mV/V-signal of a DMS measuring bridge is used if more than one strain sensor should be connected in parallel. This is the case for weight measurements and for force measurement at several tie-bars of a press. The strain sensor will generate a proportional DMS bridge signal (mV/V) depending on the stress of the structure.
