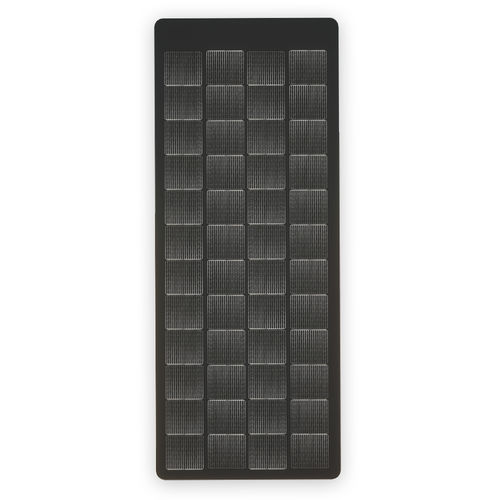

Monocrystalline silicon solar panel XANTREX SOLAR MAX PANEL series
PERCflexibleflexible

Monocrystalline silicon solar panel - XANTREX SOLAR MAX PANEL series - Xantrex - PERC / flexible / flexible
Monocrystalline silicon solar panel - XANTREX SOLAR MAX PANEL series - Xantrex - PERC / flexible / flexible
Add to favorites
Compare this product


Characteristics

Technology
monocrystalline silicon
Features
PERC
Other characteristics
flexible, flexible
Peak power (Wp)

110 W, 220 W, 330 W

Open-circuit voltage

29.2 V, 43.8 V

Short circuit current

4.8 A, 9.7 A

Max power voltage

24.6 V, 36.9 V

Max power current

4.5 A, 9 A

Module efficiency

20 %

Lenght

998 mm, 1,818 mm, 1,871 mm
(39 in, 72 in, 74 in)

Width

376 mm, 693 mm, 732 mm, 1,054 mm
(15 in, 27 in, 29 in, 41 in)

Weight

2.7 kg, 2.8 kg, 5.3 kg, 7.6 kg
(5.95 lb, 6.17 lb, 11.68 lb, 16.76 lb)

Description

Premium peel-and-stick flexible solar panel. Designed to provide long-lasting durability and performance in the most extreme environmental conditions. No Drilling, Peel & Stick Flexible Panels The Xantrex Solar Max 110W, 110W Slim, 220W, 330W flex panels, feature solar panels with a mesh grid-technology that provides superior durability and performance benefits. With approximately 2000 points of contact per cell, this mesh grid-technology allows the panel to flex up to 180 degrees, without impacting power output. Subjected to extreme environmental and accelerated lifecycle testing beyond regulatory standards, the Max panel was tested to be 50 times more durable than a standard flexible panel. Also designed with a highly protective top-layer called ETFE (Ethylene-Tetra-Fluoro-Ethylene), this allows for better light transmittance, corrosion resistance, stain-resistance, weather resistance, and overall superior durability over a wide temperature range, compared to non-ETFE semi-flexible panels. In addition, the Max panel can harvest up to 20% more energy during the day in low light or shaded conditions compared to a standard solar panel. Applications: Recreational Vehicles Heavy Duty Trucks Marine Work Trucks Specialty Vehicles Ultra Durable and Weather-Resistant Tested in extreme stress conditions, including high heat, high humidity, freezing, bending, hail impact, with minimal impact on power output. 20% Bonus Energy Generation Shade is the enemy of solar panels. Tested to produce 70% of normal power in severely shaded conditions compared to almost no power from leading competitor technologies. Features State-of-the-art mesh-grid technology

VIDEO
