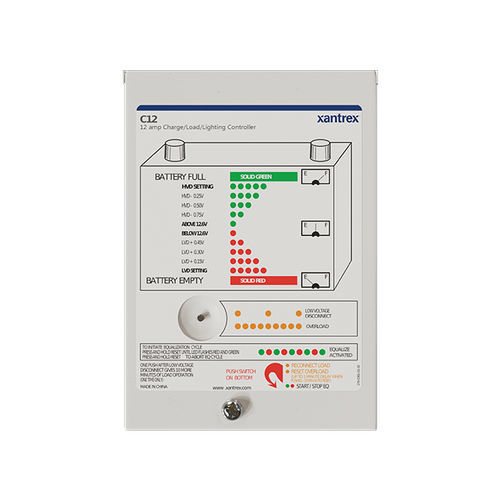

Battery charge controller C12

solarfor lightingPWM

The C12 charge, lighting, or load controller is uniquely sophisticated. As a charge controller, it features three-stage charging, user definable voltage parameters, and automatic equalization. PV charge, diversion and load controller The C12 charge, lighting, or load controller is uniquely sophisticated. As a charge controller, it features three-stage charging, user definable voltage parameters, and automatic equalization. Standard in the C12’s load control circuitry are field adjustable low voltage disconnect and reconnect points, along with a five-minute low battery disconnect signal. The C12 also functions as a lighting controller. Lighting run time is adjustable from two to eight hours or can be set from dusk to dawn operation. It is used worldwide in a variety of applications, including remote village lighting systems and automatic outdoor lighting. An optional battery temperature sensor manages battery charging based on battery temperature. Certifications: CE marked for the Low Voltage Directive and EMC Directive Applications: Recreational Vehicles Heavy Duty Trucks Coaches/Buses Marine Work Trucks Specialty Vehicles Electronic detection of short-circuit, overload, over-temperature and reverse polarity conditions Tolerance to hostile environments With conformal-coated boards and powder-coated enclosure. Features Three-stage regulation, solid state, and pulse width modulation Field adjustable control setpoints Automatic equalization Multi colour LED indicates operating and battery voltage status
