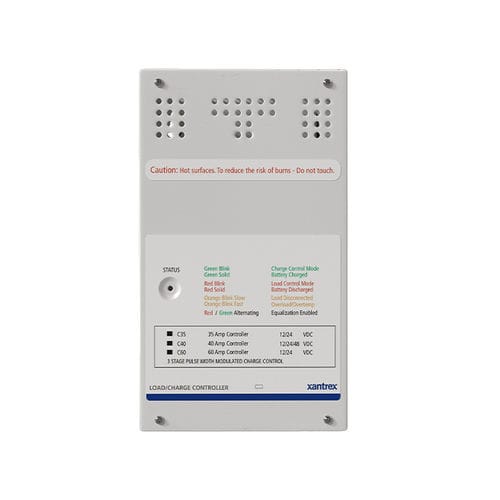

Battery charge controller C series

PVfor the automotive industryPWM

The C35 and C60 are field configurable for 12 V and 24 V operation. The C40 may be configured for 12 V, 24 V, or 48 V operation. C35, C40 and C60 charge controllers can be used as a charge, diversion, or load controller and come with a standard multi-color charge status LED face plate. PV charge, diversion and load controller A Controller for Virtually any DC Charging Source. The C60 is a fully solid state, microprocessor-driven controller that is UL and cUL listed. C Series controllers may be configured for PV battery charging, or DC load control or DC diversion operation. Whatever the charging source, a C Series controller is sure to meet your DC controller needs. Silent Microprocessor Control-All C Series controllers have a powerful microprocessor at their core which increases system performance and maximizes battery life. They are fully solid state and operate silently. Certifications: UL listed to UL1741* and CSA 107.1-01; CE Marked for the Low Voltage Directive FCC and Industry Canada Class B, CE Marked for the EMC Directive Applications: Recreational Vehicles Heavy Duty Trucks Coaches/Buses Marine Work Trucks Specialty Vehicles Improve battery life via pulse width modulated (PWM) multi-stage temperature compensated charging Tolerance to hostile environments with conformal-coated boards and powder-coated enclosure Features Three-stage regulation, solid state, and pulse width modulation Field adjustable control setpoints Automatic equalization Multi colour LED indicates operating and battery voltage status
