Specifically designed to operate with the NEW Generation Freedom SW Inverter/Chargers – 12V & 24V (part# 815-2012, 815-3012, 815-2024 and 815-3024).
Use the System Control Panel for quick and comprehensive control of the Freedom SW Inverter/Charger.

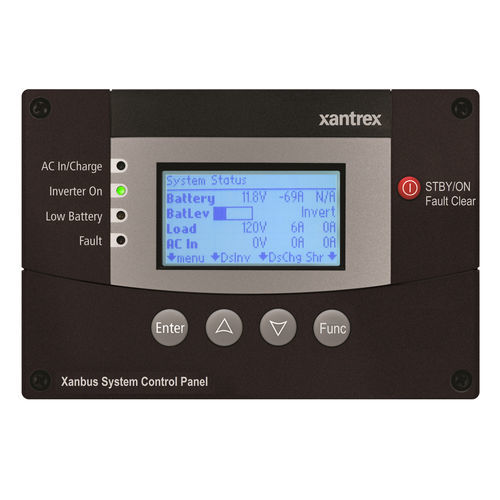

The Xanbus System Control Panel (SCP) features a graphical, backlit LCD screen that displays system configuration and diagnostic information in one central location. Large keypad buttons, an intuitive onscreen menu system, and plain text status messages make it easy to configure and operate. By providing basic controls for other devices connected to the network, the SCP reduces the complexity of separate control panels for each device.
The SCP is Xanbus Enabled and easily connects to Freedom SW Inverter/Charger and other devices with off-the-shelf network cables, making installation quick and easy. Built-in flash memory makes the SCP’s software upgradeable to take advantage of new features and system enhancements.
Certifications:
CSA certified to CSA 107.1-01 and UL 458 including Marine Supplement
FCC part 15B Class B; Industry Canada ICES-0003 Class B
Applications:
Recreational Vehicles
Heavy Duty Trucks
Work Trucks
Custom Solutions
Marine
Features
Provides comprehensive set-up and control of your Xantrex power system
Graphical 128×64 pixel LCD display
Control and display of multiple networked devices
