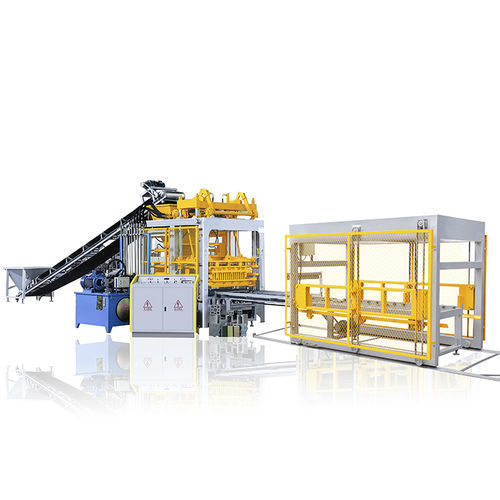

Concrete block making machine QT10-15

automatic

Vibration System Vibration table consists with dynamic table and static table. When vibration begin,dynamic table vibrate,static table remain static. The structure is designed to ensure the amplitude of the vibration table, so as to ensure the high quality of concrete products Feeding System Motor use SIEMENS motors or other Famous brand Chinese motor, which control two mixing shafts. Feeding frame, bottom plate and mixing blade are made of high-duty steel, the location of bottom plate can be adjusted. The raking teeth is a complete piece bolted to the feeding cart shaft,easy to be changed during maintenance Hydraulic Station Hydraulic pumps and hydraulic valves adopt international brands Japanese YUKEN Brand,with double proportional and single proportional valve as well as relief valve. The flow and pressure for the hydraulic can be adjusted according to different concrete block production. Tube uses 'Flange Connection', convenient installation and maintenance. Multi-point pressure detection point, convenient detection. Digital temperature and blockage alarm function. Motor and pump connection, flange connection, good coaxial. Dynamic proportional valve and constant power pump, speed regulation, voltage regulation, energy saving Control system Germany Siemens PLC control system,Siemens touchscreen, SCHNEIDER relay and Contactor,easy operation,low failure ratio, machine running stability and high reliability. Use the most-advanced industrial internet technology, realize remote trouble-shooting & maintenance. REMOTE control device being installed in control system, allow to do remote control for customer, convenient for machine maintenance and troubleshooting
