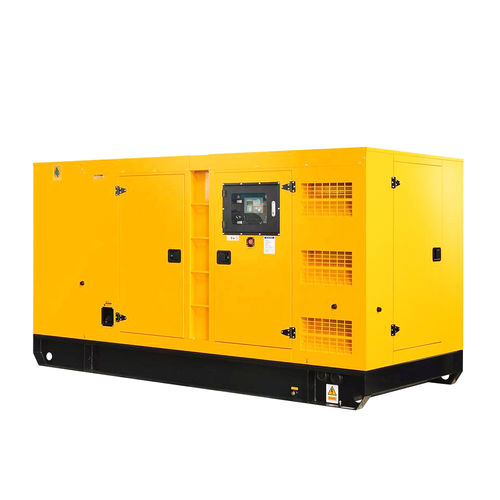

Diesel generator set XCMGE XG100
three-phasecontainerizedon casters

Diesel generator set - XCMGE XG100 - XCMG - three-phase / containerized / on casters
Diesel generator set - XCMGE XG100 - XCMG - three-phase / containerized / on casters
Diesel generator set - XCMGE XG100 - XCMG - three-phase / containerized / on casters - image - 2
Diesel generator set - XCMGE XG100 - XCMG - three-phase / containerized / on casters - image - 3
Diesel generator set - XCMGE XG100 - XCMG - three-phase / containerized / on casters - image - 4
Diesel generator set - XCMGE XG100 - XCMG - three-phase / containerized / on casters - image - 5
Diesel generator set - XCMGE XG100 - XCMG - three-phase / containerized / on casters - image - 6
Diesel generator set - XCMGE XG100 - XCMG - three-phase / containerized / on casters - image - 7
Diesel generator set - XCMGE XG100 - XCMG - three-phase / containerized / on casters - image - 8
Diesel generator set - XCMGE XG100 - XCMG - three-phase / containerized / on casters - image - 9
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
containerized, on casters, trailerable
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
water-cooled
Applications
industrial, for construction site, for military applications, for telecom applications, for hospitals, for marine applications, for railway applications, for mining
Options and accessories
low noise level, open type, outdoor, indoor
Emissions level
Tier 3
Power in kVA

100 kVA, 110 kVA
(135.96 hp, 149.56 hp)

Rated capacity

Max.: 100 kW
(136 hp)

Min.: 80 kW
(108.8 hp)

80 kW, 88 kW
(108.8 hp, 119.6 hp)

Voltage

Max.: 400 V

Min.: 230 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Length

2,000 mm
(79 in)

Width

900 mm
(35 in)

Fuel tank capacity

5.9 l
(1.6 gal)

Height

1,450 mm
(57 in)

Weight

1,000 kg
(2,204.62 lb)

Description

XCMG generator sets provide customers with reliable, safe, energy-saving, environmentally friendly and intelligent backup power source and base station power supply. It can be widely used in mines, ports, communications, transportation, airports, hotels, data centers and other industries. It is suitable for special environments such as isolated islands, deserts, mountains and extremely weather regions. By using the world's leading power engines, efficient generators and controller systems with different designs, it make diesel generator sets running in the best state with enough power and stable performance. The design, material selection and manufacture of the silent power station have fully considered its use environment, rainproof, waterproof, snow, soundproof, heat insulation, sunscreen, anticorrosion etc. For multi machine parallel applications with complex load management, the integrated master control system is combined with the generator set controller to form an unattended fully automatic power management platform. No matter from the operation level or from the security point of view, we will provide reliable guarantee. Designed to meet international safety standards. Meet modern power management requirements through open communication protocol and dedicated PLC software real time remote monitoring requirements. The compact design is convenient for transportation.
