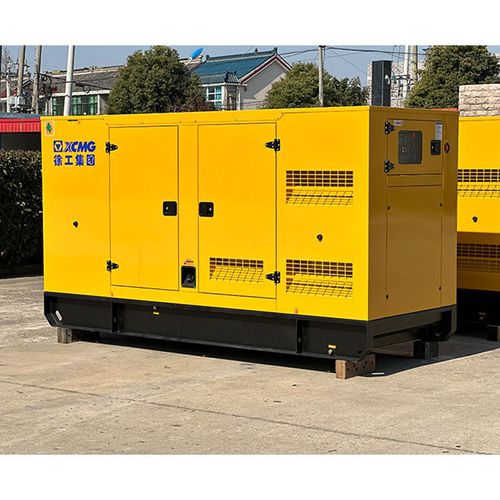

Diesel generator set XHZW-38GF
three-phasecontainerizedtrailerable

Diesel generator set - XHZW-38GF - XCMG - three-phase / containerized / trailerable
Diesel generator set - XHZW-38GF - XCMG - three-phase / containerized / trailerable
Diesel generator set - XHZW-38GF - XCMG - three-phase / containerized / trailerable - image - 2
Diesel generator set - XHZW-38GF - XCMG - three-phase / containerized / trailerable - image - 3
Diesel generator set - XHZW-38GF - XCMG - three-phase / containerized / trailerable - image - 4
Diesel generator set - XHZW-38GF - XCMG - three-phase / containerized / trailerable - image - 5
Diesel generator set - XHZW-38GF - XCMG - three-phase / containerized / trailerable - image - 6
Diesel generator set - XHZW-38GF - XCMG - three-phase / containerized / trailerable - image - 7
Diesel generator set - XHZW-38GF - XCMG - three-phase / containerized / trailerable - image - 8
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
containerized, trailerable
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
water-cooled
Applications
industrial, emergency, for telecom applications, for cogeneration, for railway applications, for mining
Options and accessories
low noise level, open type, outdoor, indoor
Emissions level
Tier 3
Power in kVA

38 kVA, 41 kVA
(51.67 hp, 55.74 hp)

Rated capacity

30 kW, 33 kW
(40.8 hp, 44.9 hp)

Voltage

Min.: 230 V

Max.: 400 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Length

1,600 mm
(63 in)

Width

600 mm
(24 in)

Fuel tank capacity

2.3 l
(0.6 gal)

Height

1,000 mm
(39 in)

Weight

600 kg
(1,322.77 lb)

Description

XCMG generator sets provide customers with reliable, safe, energy-saving, environmentally friendly and intelligent backup power source and base station power supply. It can be widely used in mines, ports, communications, transportation, airports, hotels, data centers and other industries. It is suitable for special environments such as isolated islands, deserts, mountains and extremely weather regions. By using the world's leading power engines, efficient generators and controller systems with different designs, it make diesel generator sets running in the best state with enough power and stable performance. The design, material selection and manufacture of the silent power station have fully considered its use environment, rainproof, waterproof, snow, soundproof, heat insulation, sunscreen, anticorrosion etc. For multi machine parallel applications with complex load management, the integrated master control system is combined with the generator set controller to form an unattended fully automatic power management platform. No matter from the operation level or from the security point of view, we will provide reliable guarantee. Designed to meet international safety standards. Meet modern power management requirements through open communication protocol and dedicated PLC software real time remote monitoring requirements. The compact design is convenient for transportation.
