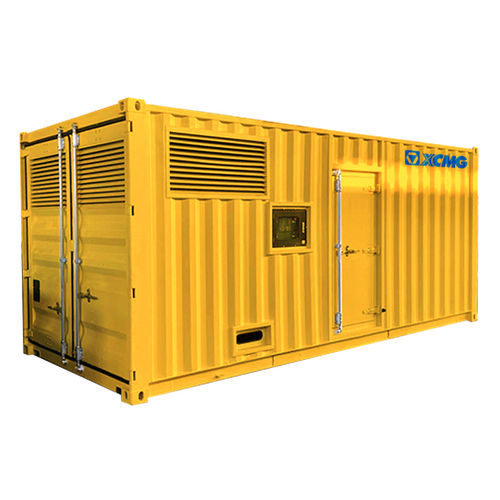

Diesel generator set XHZC-1250GF
three-phasecontainerizedtrailerable

Diesel generator set - XHZC-1250GF - XCMG - three-phase / containerized / trailerable
Diesel generator set - XHZC-1250GF - XCMG - three-phase / containerized / trailerable
Diesel generator set - XHZC-1250GF - XCMG - three-phase / containerized / trailerable - image - 2
Diesel generator set - XHZC-1250GF - XCMG - three-phase / containerized / trailerable - image - 3
Diesel generator set - XHZC-1250GF - XCMG - three-phase / containerized / trailerable - image - 4
Diesel generator set - XHZC-1250GF - XCMG - three-phase / containerized / trailerable - image - 5
Diesel generator set - XHZC-1250GF - XCMG - three-phase / containerized / trailerable - image - 6
Diesel generator set - XHZC-1250GF - XCMG - three-phase / containerized / trailerable - image - 7
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
containerized, trailerable
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
water-cooled
Applications
industrial, for construction site, for telecom applications, for hospitals, for cogeneration, for railway applications, for mining
Options and accessories
low noise level, open type, outdoor, indoor
Emissions level
Stage III, Tier 3
Power in kVA

Max.: 1,375 kVA
(1,869.48 hp)

Min.: 1,100 kVA
(1,495.58 hp)

Rated capacity

Max.: 1,250 kW
(1,699.5 hp)

Min.: 1,000 kW
(1,359.6 hp)

Voltage

Max.: 400 V

Min.: 230 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Length

5,200 mm
(205 in)

Width

2,000 mm
(79 in)

Fuel tank capacity

50 l
(13.2 gal)

Height

2,500 mm
(98 in)

Weight

11,000 kg
(24,250.85 lb)

Description

XCMG generator sets provide customers with reliable, safe, energy-saving, environmentally friendly and intelligent backup power Source and base station power supply. It can be widely used in mines, ports, communications, transportation, airports, hotels, data centers and other industries. It is suitable for special environments such as isolated islands, deserts, mountains and extremely weather regions. By using the world's leading power engines, efficient generators and controller systems with different designs, it make diesel generator sets running in the best state with enough power and stable performance. The standard container has a CSC certificate, which is convenient for export and saves transportation costs. The container base adopts anti-leakage design, which can prevent external pollution caused by oil machine leakage. LED lights are installed outside and inside the container for on-site lighting. An optional refueling device and oil level display can be installed outside the box to facilitate external refueling. Embedded climbing ladder is designed on the outside of the box, which is convenient for personnel to do maintenance. The top of the box is designed with an adjustment port for the unit in place, which is convenient for the hoisting and alignment of the unit.
