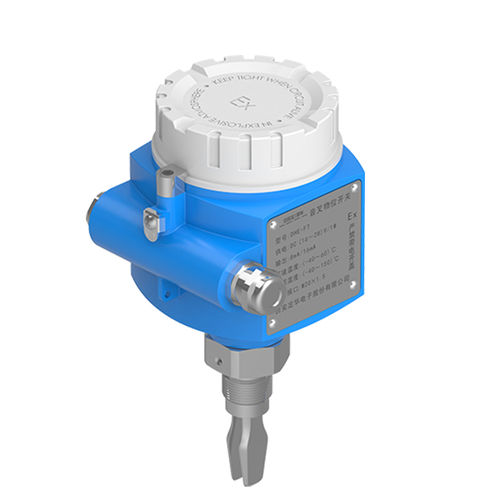

Tuning fork level switch DHE-FT

for liquidsfor solidsfor tank

DHE-FT Vibrating Level Switch is a control switch for level measurement developed and produced by DHE. This instrument combines the unique “ELL Signal Analysis Technology” and the leading manufacturing technology, which ensures the high reliability and durability of DHE Vibrating Level Switch. This product is suitable for level measurements in containers, storage tanks, tanks and conduits. Meanwhile, based on the design principle of detecting the change of vibration frequency when the fork is immersed in the medium, it is also suitable for the complex measurement occasions with turbulence, foam, vibration, bubble and viscous liquid. Specifications Explosion proof grades: Intrinsically safe type: Ex ia ⅡC T6 Ga; Flameproof type: Ex d ⅡC T6 Ga/Gb Protection grade: Ip67 Set point error: ±1mm Switch error: ±2mm Handover delay: 0.3/1/3/10/30 seconds Process temperature: （-40～150）℃;（-70～260）℃ Process pressure: （-0.1～6.0）MPa Media: liquid: density ≥0.5g/cm³; powder or solid particle: density ≥0.5g/cm³ Housing material: Cast aluminum alloy (polyester coating) Process connection: thread connection: G3/4、3/4NPT; flange connection: size ≥DN25，pressure ≤PN63 Electrical interface: M20×1.5 internal thread (Through the adapter, it can be connected to other interfaces.) Materials of fork and extension pipe: 316L stainless steel; 316L stainless steel + ECTFE coating; 316L stainless steel + PFA coating; Hastelloy C and C-276
