- Absolute pressure sensor
- Xi'an Gavin Electronic Technology Co. Ltd.

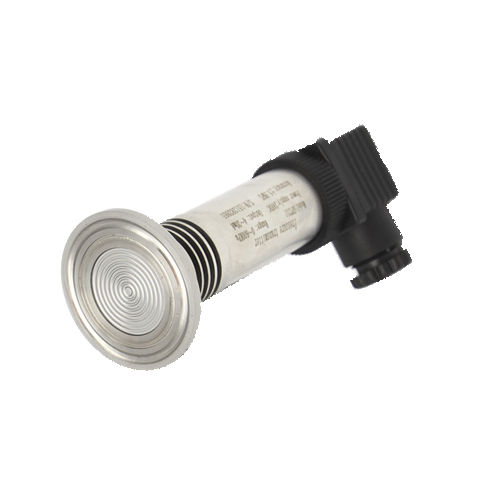

Absolute pressure sensor GPT210 membraneanalog12 Vdc
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Technology
- membrane
- Output
- analog
- Supply voltage
- 12 Vdc, 5 VDC
- Mounting
- flush diaphragm
- Process connection
- G 1/2, NPT 1/2
- Material
- stainless steel
- Protection level
- IP65
- Other characteristics
- sanitary, oil-filled
- Pressure range
Max.: 20,000,000 Pa
(2,900.75 psi)Min.: 0 Pa
(0 psi)- Precision
0.25 %, 0.5 %
- Long-term stability
0.2 %
- Process temperature
Max.: 85 °C
(185 °F)Min.: -20 °C
(-4 °F)
Description
Sanitary type, anti scaling
Good sealing, high stable
With short circuit protection and reverse polarity protection
GPT210 pressure sensor adopts GS series piezoresistive flat membrane silicon oil-filled sensing element as the signal measuring element, with stainless steel diaphragm which can be compatible with gas or dilute liquid With a flush diaphragm process connection, so it is mainly applied to general applications such as food,pharmaceutical and chemical liquid pressure measurement.
Catalogs
GPT210
2 Pages
