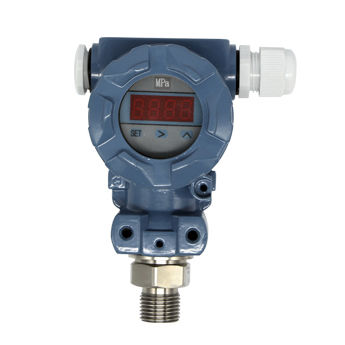

Relative pressure transmitter GPT240 analogHARTRS-485
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Output
- analog, HART, RS-485
- Mounting
- threaded
- Material
- stainless steel
- Other characteristics
- precision, OEM, with digital display
- Pressure range
Min.: -0.1 Pa
(-0 psi)Max.: 100,000,000 Pa
(14,503.77 psi)- Precision
0.1 %, 0.25 %, 0.5 %
- Long-term stability
0.2 %
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 85 °C
(185 °F)
Description
RS485 communication interface or Hart communication protocol
Digital display
Support for networking applications
With digital compensation and nonlinear correction technology
High sensitivity, high precision
No moving parts, reliable in performance
Wide pressure range
GPT240 series pressure transmitter, is a high precision, high stability of the intelligent pressure measurement products. It adopts all welded OEM oil filled core body and ADI special chip, combining the microprocessor technology. With the function of the scene display, data processing, zero and full range of software adjustment, 4-20 ma output and communication. Suitable for precision measurement of fluid pressure. It can directly replace analog 4 -20 ma output pressure transmitter.
