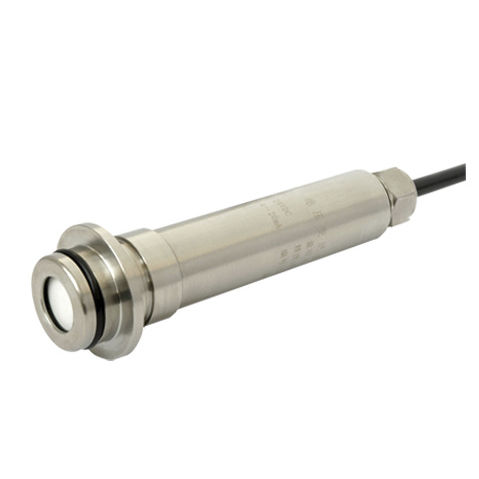

Piezoresistive level sensor GLT580 for water4-20 mAOEM
Add to favorites
Compare this product
Characteristics
- Technology
- piezoresistive
- Medium
- for water
- Interface
- 4-20 mA
- Applications
- OEM
- Other characteristics
- high-precision, submersible, IP68
- Process pressure
Max.: 9.8 bar
(142.14 psi)Min.: 0 bar
(0 psi)- Process temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
Pressure range: 0~1mH2O...100mH2O
Accuracy: ±0.25%FS, ±0.5%FS
Titanium oil-filled core
OEM is available
Digital calibration
GLT580 level sensor with high reliability, high reliability, high accuracy and whole temperature digital compensation level transmitter, is especially designed for kinds of seawater measurement, Both the oil-filled core and shell adopt titanium structure could work safety in 20 seawater for long time. It adopts latest digital temperature compensation technique to avoid whole temperature accuracy missing and decreasing Also it can easily calibrate zero and full scale through computer as well as make external adjustment. We can offer special ventilated cable that resistance to abrasion, acid & alkaline according todifferent occasions.
