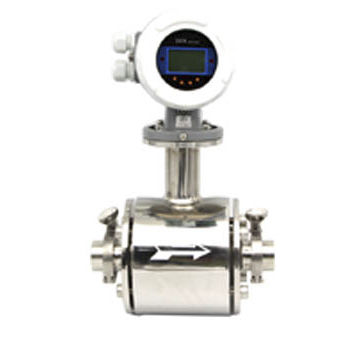

Magnetic flow meter GMF200
for liquidsDN25 - 1"DN50 - 2"

magnetic flow meter
magnetic flow meter
magnetic flow meter
Add to favorites
Compare this product


Characteristics

Technology
magnetic
Fluid
for liquids
Pipe diameter
DN25 - 1", DN50 - 2", DN80 - 3", DN100 - 4", DN15 - 1/2", DN40 - 1"1/2, DN10 - 3/8", DN20 - 3/4", DN32 - 1"1/4, DN65 - 2"1/2, DN60 - 2"1/4, DN90 - 3"1/2
Installation
clamp-on
Communication
digital output
Supply voltage
24 Vdc, 220VAC
Protection level
IP65, IP67, IP68
Applications
for the pharmaceutical industry, for the food industry, sanitary
Other characteristics
compact, remote
Volumetric flow rate

Min.: 0.3 m³/s
(10.5944 ft³/s)

Max.: 10 m³/s
(353.1467 ft³/s)

Process temperature

180 °C
(356 °F)

Process pressure

1,600,000 Pa
(232.06 psi)

Precision

0.5 %

Description

sanitary magnetic flow meter milk, cream, juice,beer measurment Tri-clamp connection GMF200 sanitary magnetic flow meter is specially designed for measurement of food liquid, like milk, cream, juice of various fruits, pharma liquid etc. It is available with compact or remote version of transmitter can be installation either horizontally or vertically with a variety of optional end-fittings to meet your requirements.
