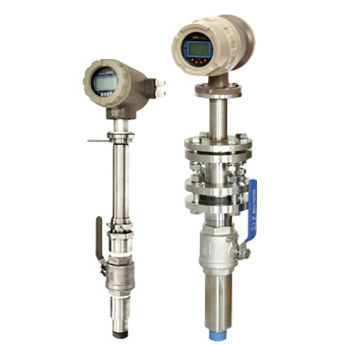

Electromagnetic flow meter GMF400
volumefor waterfor wastewater

Electromagnetic flow meter - GMF400 - Xi'an Gavin Electronic Technology Co. Ltd. - volume / for water / for wastewater
Electromagnetic flow meter - GMF400 - Xi'an Gavin Electronic Technology Co. Ltd. - volume / for water / for wastewater
Add to favorites
Compare this product


Characteristics

Technology
electromagnetic
Type
volume
Fluid
for water, for wastewater, for acids
Pipe diameter
DN300 - 12", DN1200 - 48"
Installation
insertion
Material
stainless steel
Supply voltage
24 Vdc, 220VAC
Protection level
IP65, IP68
Volumetric flow rate

Max.: 6 m³/s
(211.888 ft³/s)

Min.: 0.5 m³/s
(17.6573 ft³/s)

Process temperature

Max.: 150 °C
(302 °F)

Min.: -20 °C
(-4 °F)

Process pressure

1,600,000 Pa
(232.06 psi)

Precision

2.5 %

Description

1.Available for large diameter piping 2.Desorption is easy and bring excellent maintainability 3.Compatible with commercially available cables 4.Can calibrate actual flow rate with a user-specified flow rate GMF400 Insertion electromagnetic flow meter is composed of insertion electromagnetic sensor and electromagnetic flow converter, used to measure the conductive liquid that electrical conductivity is greater than 5 us/cm , it is used to measure the water, sewage, acid, alkali and other medium. Suitable for measuring the large pipe of diameter DN300~DN3000mm,. Installation can be divided into a online installation type of the cut-off valve and water control installation type without stop valves.
