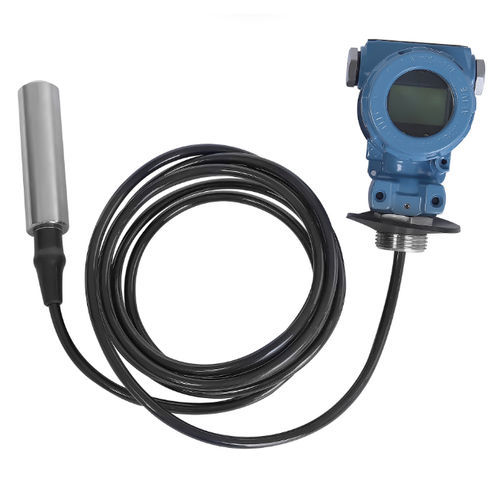

Piezoresistive level transmitter YLT328

liquidCEwith digital display

YLT328 is a fully submersible level transducer with display suitable for liquid level and depth measurement.It consists of the U.S.A imported CE piezoresisve sensing element encased in a 316 SS housing. Its all stainless steel, hermetically sealed housing make it suitable for immersion for a long time in most industrial liquids and oils.Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. Units come equipped with a 270-pound tensile strength shielded and vented cable. Ventilaton tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The vent is protected with a maintenance free filter eliminating particulate or water droplets from entering the transducer.YLT328 incorporates lightning and surge protection ullizing dual arrestor technology, To assure under the input and output short- circuit conditions to prevent reverse connection. It also eliminates both power supply surges and lightning ground strike transients. Features: CE pressure cell, 0.5% F.S. 304SS /316L stainless steel diaphragm welded 304SS /316SS body construction shock and erosion Custom level ranges from 50cm to 100m 4-1/2 bits LED/LCD Screen Locally Display optional IP68 Welding process waterproof design Optional Lifetime Lightning Protection Custom PU, PE or PVC FEP cable lengths Application: Irrigation Equipment Ambient Temperature: 25°C (unless specified) Sea Water Level Measurement and Control Deep Well and Groundwater Monitoring Vessel and Storage Monitor Systems Control of Lift and Pumping Stations Surface Water Monitoring Deep watering
