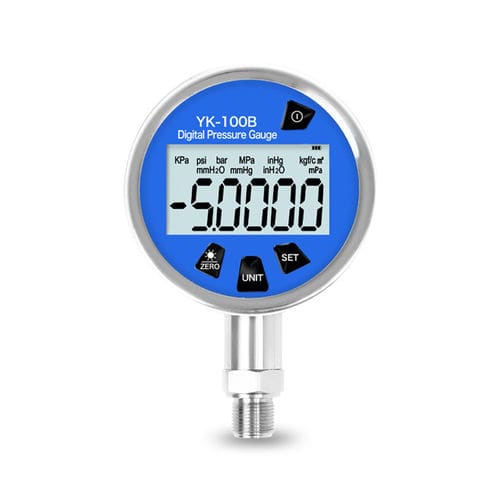

Absolute pressure gauge YK-100B

differentialwith LCD displayG 1/4

This YK-100B Digital pressure gauge is a new micro power smart product developed by our company. It uses advanced micro power devices and unique software processing technology to truly continuously measure pressure values. The built in LI battery can work continuously for more than 3 years in 24 hours; it adopts a large screen segment code wide viewing angle LCD display window, and the reading is very eye catching and intutive. Before out factory, it has undergone high and low temperature aging, stress aging and temperature compensation processes, and can ensure the accuracy of the product even under the harsh conditions of (0 ~ 50) °C, within one year, and 99% confidence probability. Features: Micro power consumption, high accuracy, high definition digital LCD display Small size, easy to operate, easy to use in field calibration and precise pressure measurement Intelligent calibration, linearity repair, two second magnetic pen induction zero adjustment The liquid crystal display has a dynamic pressure value display function, which can directly display the pressure percentage Pressure Units: mmH2O mmHg psi kPa MPa Pa mbar bar Up to ten pressure units (optional) The digital pressure gauge comes with 485 RTU protocol, and the supportng PC software can monitor the trans mission data in real time Application: Calibration standard for (differential) pressure transmitters and pressure gauges. Chemical online monitoring Group ts country H outfit E item Raw material monitoring in pharmaceutical factory water pressure test Pressure measurement of tanks in printing plants Sewage Pipeline Monitoring
