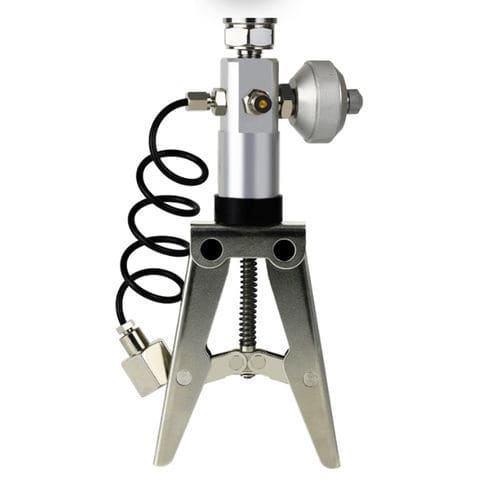

Manual pressure calibration pump Y06 series

for vacuum

Y060 hand-operated pressure pump is a liquid type hand pressure pump. Used to calibrate the industrial process in the field of installation of pressure measuring instruments and control the use of indoor types of pressure instruments, but also for the calibration table to provide pressure source. Pressure within 25Mpa for pressure transmitter, pressure sensors and various types of pressure instruments can be calibrated by this pressure pump. It is portable, light weightt, easy to use. The structure is designed to fine tune the handle , rotating handle to easily change the output pressure . Features： The hand-operating pressure pump is portable, light weight, wide temperature range, easy to use. There is a trim adjustment handle valve and switch valve on the pump, so that it is easy to adjust the pressure or exhaust the air. There are also matched fast connection, nylon hose, instrument connector etc, used to connect the calibrated instrument and the standard gauge. The pump is easy to carry and to connect with the Application： It is suitable for calibrating various differential pressure, vacuum pressure and pressure instruments, and can also be used as a vacuum pressure source for the above pressure instruments. calibrated instruments in the field, so the operator can calibrate the instrument fast and simple
