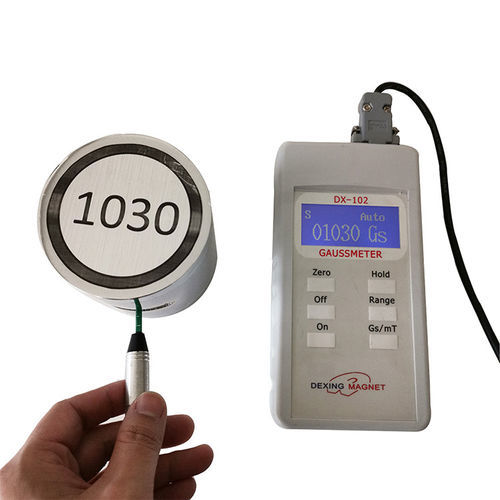

Portable gaussmeter DX-102

hand-held

DX-102 Gaussmeter is a portable Gauss meter, based on the latest progress of the Hall effect magnetic field measuring instrument, adopted DSP technology. Test probe adopts import GaAs linear Hall chip, the difference between any two probes is small, if damaged, it can be replaced directly. DX-102 Gaussmeter is an ideal DC magnetic field test instrument. The function of DX-102 Handheld Gauss Meter: - DC magnetic field and magnetic field peak value measurement; - Permanent magnet magnetic field distribution measurement; - The magnetizing measurement of the permanent magnets; - The magnetic field distribution measurement inside the DC coil; - The air gap magnetic field measurement of DC electromagnet; - Normal DC magnetic field measurement. Features of DX-102 Handheld Gauss Meter: - Direct reading of magnetic field; - Direct displaying of the north and south pole (N/S) of the magnetic field; - A key of zeroing - mT / Gs unit switch; - Easy operation, without calibration; - The battery can be used for a long time; - LCD backlight Parameters of DX-102 Handheld Gauss Meter: - Battery: 7.4 V lithium battery; Size: 5*4.8*1cm(there aren't too many limitations for the Li battery needed, the battery you find just needs to reach 7.4 V, and its size can let it be put in the place where the battery is loaded). - Range: 30.0mT, 300mT, 3000mT three gears; - Accuracy: (1). better than 1.0% (0 ~ ±1000mT); (2). better than 2.0% (＞1000mT ); - Auto power-off after 60 seconds interval - Magnetic field minimum resolution: 0.1mT (1Gs) - Dimension: 170mm × 90mm × 40mm - Weight: 450g
