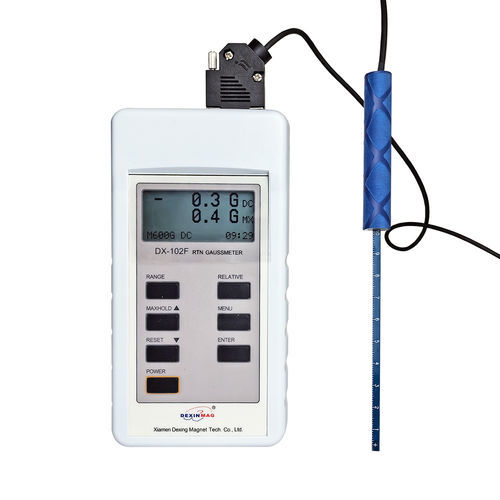

Portable gaussmeter DX-102F

digital

DX-102F is a portable AC and DC gaussmeter used for measuring the surface magnetic field of permanent magnets and the working magnetic field of DC motors and magnetic separators. DC Measurement Range: 30kG, 6kG, 600G; AC Measurement Range: 3.6Kg, 120G; DC measurement: - Range: ±30kG, ±6kG, ±600G DC - Display resolution: 3 3/4、3 6/7 bit - Test resolution: 10G, 1G, 0.1G - Accuracy: (1% reading +0.05%range) @ 25℃±5℃ - Rate of reading: 10 readings/ s AC measurement: - Range: ±3.6kG, ±1.2kG, ±120G RMS - Display resolution: 2 3/4、3 1/2 bit - Test resolution: 10G, 1G, 0.1G - Accuracy: ±3% reading @ 25℃±10℃ (30Hz—10kHz, sinusoidal wave) - Rate of reading: 5 readings/ s. Hall probe: 1. Universal all-copper/glass fiber package, calibration-free digital transverse hall probe. 2. Multipoint linear correction, proprietary RTN1 zero stability and noise reduction techniques. 3. Temperature coefficient: (0.05% reading + 0.02G) /℃ @ 25℃±10℃ 4. Automatic- calibration zero; Automatic control: Standards equipped with internal USB—RS-232C conversion interfaces and easy-to-use interface features. Provides complete command set. Interactive capacity: White backlight FSTN LCD display 3×4 key interactive keyboard operation with display; Mathematical computation: Maximum value maintenance and relative value function G、T、A/m unit transformation; Electricity and charging: 1. 1850mAh lithium polymer battery 2. Charging using standard USB interface (500mA) 3. Built-in lithium battery charge manager and LED indicator 4. The charging interface also serves as a communication interface.
