Vibrating sample magnetometer DXV-250

digital

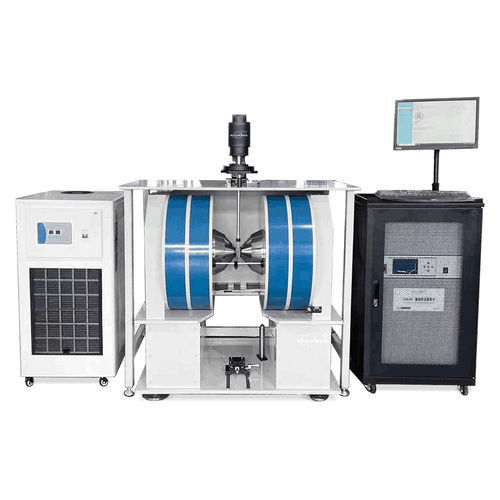

DXV-250 VSM Device with High Temperature control and cooling system can measure the basic magnetic properties of magnetic materials: such as magnetization curve, hysteresis loop, demagnetization curve, heating curve, cooling curve, magnetization curve at set temperature, hysteresis loop at set temperature, etc. 1. It can be used for material research and development, quality control and product testing to complete the measurement and analysis of the basic magnetic properties of magnetic materials: such as saturation magnetization, residual magnetization, coercive force, maximum magnetic energy product, Curie temperature, magnetic Conductivity (including initial magnetic permeability), etc. 2. Can measure magnetic materials such as powders, granules, flakes, and blocks. 3. It can measure the magnetic properties of magnetic materials in situ with temperature from room temperature to 500 degrees and from room temperature to liquid nitrogen. Main technical indicators 1. Measuring magnetic moment range (when the magnetic pole spacing is 40mm): 10-3emu-300emu (sensitivity: 5×10-5emu); 2. Relative accuracy (when measuring range is 3emu): better than ±1%; 3. Repeatability (when measuring range is 3emu): better than ±1%; 4. Stability (when the measuring range is 3emu): the stability is better than ±1% after 4 hours of continuous operation; 5. Temperature range: room temperature to liquid nitrogen temperature range and room temperature to 500°C; 6. The magnetic pole spacing is fixed at 35mm and the pole surface diameter is 60mm; 7. Magnetic field strength: maximum magnetic field strength 2.2T;
