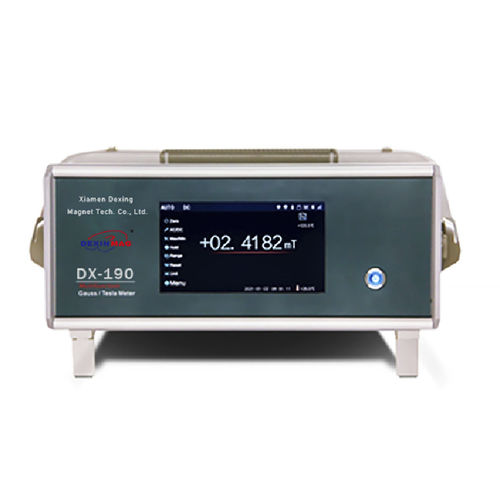

Teslameter gaussmeter DX-190

USBdigitaldesktop

The extremely high-precision instrument of the DX-190 Gauss meter is suitable for most applications. Automatically compare zero, automatic range. The maximum value, minimum value, peak value and valley value can be selected for the hold mode. The meter can measure and display multiple parameters at the same time. With high-precision analog output (±3.0V). The measurement unit can be Gs, mT, A/M or Oe DX-190 Gauss tesla meter has USB-232, BNC, CAN, and industrial control interface. High-resolution capacitive touch color graphic display, graphic measurement display, Gauss meter self-drawing, full menu operation, 6-digit reading, resolution 0.1μT, maximum range 30T, basic accuracy ±0.05%. Standard configuration Gauss meter drawing software PC version, the standard configuration of the high-precision digital probe with temperature compensation. Optional Android version of mobile phone APP terminal communication to realize testing, storage, transmission, drawing, remote control automation integrated machine, high-precision high-speed digital and analog signal output. Features of DX-190 Gauss tesla meter 1. 7.0 inch 1024 * 600 high-resolution capacitive touch IPS intelligent screen with excellent human-machine interaction interface, more convenient and fast operation 2. Switchable units: mT, Gs, Oe, A/m 3. Multiple transmission speeds of 10, 20, 50, 100, 200, 500, and 1000Hz are available for serial port selection 4. Multiple measurement modes: DC, AC_ L (up to 25Kbps), AC (effective value mode 500K, Bandwidth), Ethernet high-speed mode 5. Multiple information displays: magnetic field, frequency, temperature, maximum, minimum, peak, valley, datetime
