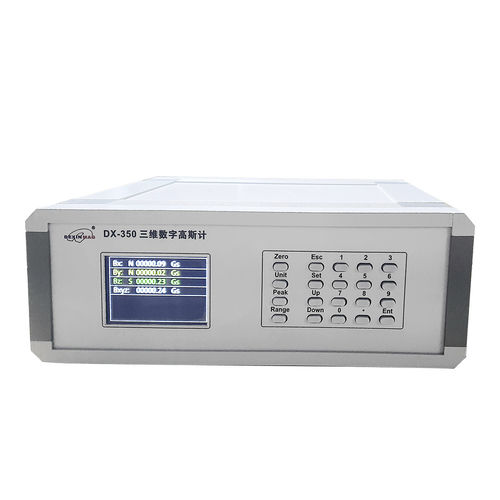

DX-350 3 axis Gauss Meter adopts advanced ARM microprocessing technology and uses multi-channel synchronous acquisition and processing technology to simultaneously display the magnetic induction intensity in the x, y, and z directions, and automatically calculate and display the Bxyz vector superposition value.
DX-350 3 axis digital gaussmeter is a three-channel high-precision digital gaussmeter developed for magnetic material production, scientific research institutes, aerospace and other units. Has the following characteristics:
● With 3.5-inch TFT true color screen, 7-digit display, the minimum resolution reaches 0.01G under the 30000G range;
● It has the function of automatically displaying the N/S polarity of the magnetic field;
● Switch to mT, Gs, KA/m, Oe, T with one click;
● With one-click clearing function, no manual adjustment is required;
● With automatic peak measurement and hold functions;
● With standard USB communication interface, optional software to form an automatic measurement system;
● Optional automation interface (can be designed to match customer needs), suitable for secondary development;
