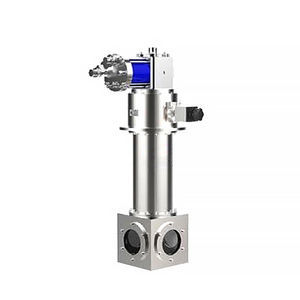

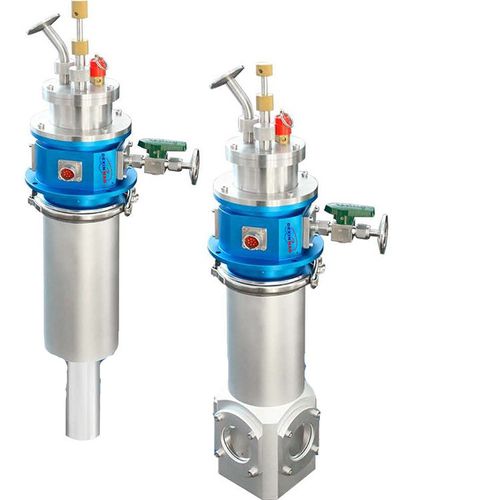

Liquid nitrogen cryostat DXNC series

vacuumflow

Dexinmag Liquid Nitrogen Cryostat has the advantages of wide temperature range(65K~800K), high efficiency, fast cooling speed, stable environment, and many options. It has become the preferred low-temperature acquisition equipment for many scientific research experiments. The Liquid Nitrogen Cryostat developed by Dexing Magnet is a low-temperature thermostat based on the steady-state bubble principle. Liquid nitrogen contains in the liquid nitrogen tank. By adjusting the cone air plug clearance and changing the boiling condition of the gas-liquid interface, the heat leakage of the constant temperature block is approximately stabilized at a certain value. Then the heating power can be adjusted by the temperature control instrument to make the sample seat change the temperature between 65K-800K rapidly and balance exactly on the set temperature. Performance and characteristics of Liquid Nitrogen Cryostat: 1. Wide temperature range (65K ~ 800K), high efficiency and fast cooling speed; 2. The sample has an ideal stable environment in a vacuum; 3. a low-temperature adsorbent is arranged in the vacuum interlayer, so that the vacuum can be kept for a long time, and the use time of the liquid nitrogen is prolonged; 4. Selection of PT100 Platinum Resistor with good Stability and repeatability for temperature Sensor; 5. A variety of options to meet different test requirements;
