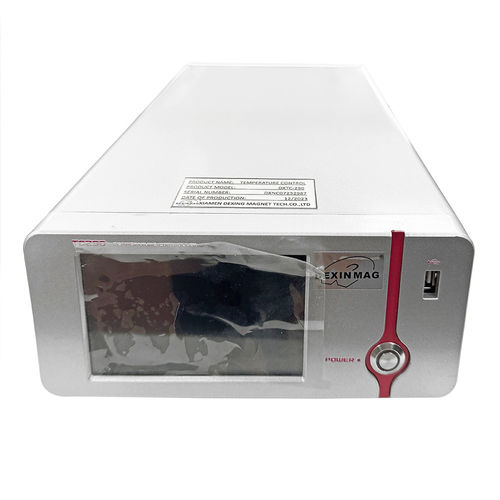

Digital temperature controller DXTC-290

industrialEthernetRS-485

DXTC-290 ultra-low temperature temperature controller can support diodes, thermocouples, platinum resistors and negative temperature coefficient resistance sensors, and can be connected to up to ten temperature sensors to achieve the experimental purpose of multi-point testing. The DXTC-290 temperature controller has extremely high resolution, accuracy, stability and other characteristics, and is at the advanced level in the industry. At the same time, it has multiple communication methods such as Ethernet, RS-485, and USB, with long data transmission distances and convenient and flexible data collection. The sensor adopts dual constant current source mode with balanced output. The constant current source can automatically shift gears at extremely low temperatures, reducing the energy injected into the sensor and ensuring stable and reliable operation of the sensor. DXTC-290 Ultra-low Temperature Controller has two control loops at the same time. The input of each loop can be associated with any one of the ten sensors. It can be expanded to up to two 100W or one 200W low-noise heater, which can realize various modes. Closed-loop temperature control and self-tuning function make operation simpler and faster. Measurement parameters ◆ Measurement accuracy: The optimal measurement accuracy can reach 10mK; ◆ Measurement range: Using an appropriate NTC RTD sensor, the measurement range can be as low as 300mK;
