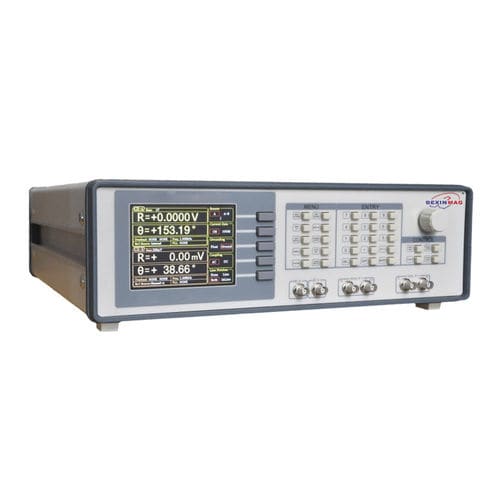

Lock-in amplifier DXA-001C

signaldifferentialanalog

Input Channel Two independent input channels have high synchronicity and can be individually configured as a single-ended mode or a differential voltage mode With the low-noise analog pre-amplifier, the signal input of DXA-001C can be switched to operate in the single-ended or differential voltage mode, and the input noise is 5 nV/√Hz. The input impedance is 10 MΩ and the full-scale input voltage sensitivity ranges from 1 nV to 1V. Besides, DXA-001C can also be used for current measurements with variable current gains of 10^6 or 10^8 V/A. Two line filters (50/60 Hz and 100/120 Hz) are designed to eliminate line related interference. The programmable gain amplifier is provided to adjust the dynamic reserve of the system according to the magnitude of the input signal, so that DXA-001C has an inherently large dynamic reserve up to 100dB. The sampling rate of 312.5KSPS is determined by a precision 24-bit A/D converter and a specific filter is designed to avoid aliasing. Reference Channel Two independent reference channels can work in external mode or internal mode. In internal mode, a precise and stable internal oscillator generates sine wave as an internal reference that is multiplied by the input signal. This internal signal is without any phase noise. With the digital phase-shifting technique, the phase resolution of the reference signal is 0.01 deg. DXA-001C can work at any fixed frequency from 1 mHz to 102 kHz in this mode. In external mode, the reference signal can be a sine wave or a TTL pulse or a square wave.
