Hydraulic press DXP25-300

electricformingPLC-controlled

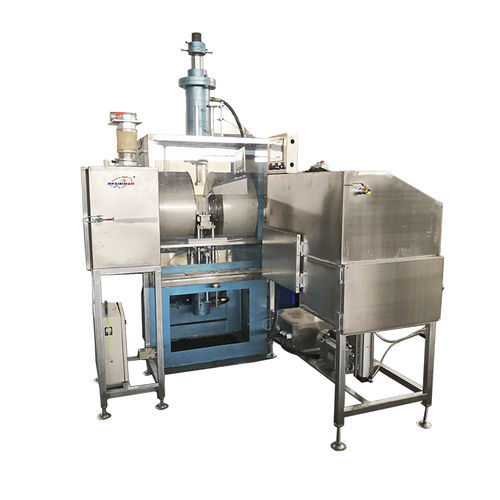

The PLC of this magnetic field press uses the OMRON company controller, and all actions are centrally controlled by the PLC. When the electromagnetic coil passes current, a spatial magnetic field with relatively parallel magnetic lines of force is generated between the two pole heads, thereby achieving the purpose of orienting the magnetic powder. The oil cylinder is controlled by the hydraulic system to implement actions such as suppression and return. The anchor hole is 4 - Φ 26, which can not be fixed, but needs to be leveled basically. The general layout is as follows: the hydraulic station is at the right rear of the main engine, and the electric control cabinet is in front of the right side of the main engine. The power incoming line requires three-phase + zero line + ground wire. The air switch and wire diameter are selected according to the total power. The recommended value is: 100A air switch, 10mm2 phase line. The hydraulic system needs about 170kg of 32# or 46# hydraulic oil, which is added through the filter above the oil tank cover. There are coolers in the electromagnet and hydraulic station of the machine, which can work continuously only by connecting the cooling circulating water; there are 3 pairs of inlet and outlet nozzles of the cooler, and all the outer diameters are Φ 26. This machine is composed of three parts: main engine, electronic control and hydraulic pressure.
