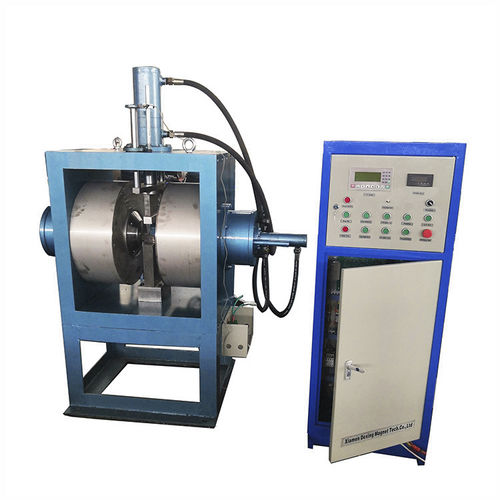

Hydraulic press DXP15-250

manualelectricforming

The automatic mode action procedure is as follows: (actions in brackets are manual operations) (The charging mold is placed between the two polar heads with the adjusted spacing, and press the "Cycle" button) → The side cylinder enters the clamping mold → The orientation starts and reaches the maximum → The upper cylinder is pressed down → Maintaining pressure → Demagnetization → The upper cylinder goes up → Side Cylinder retreat → (take the mold). The anchor hole 4-Φ26, should be fixed, and needs to be leveled basically. The layout is arranged according to the floor area of the machine and the actual site. The general layout is as follows: the hydraulic station is at the right rear of the main engine, and the electric control cabinet is in front of the right side of the main engine. The power supply incoming line requires three-phase+ zero line+ ground wire. The air switch and wire diameter are selected according to the total power. The recommended value is: 100A air switch, 10mm² phase line. The hydraulic system requires about 170kg of 46 # anti wear hydraulic oil, which is added through the filter above the oil tank cover. The electromagnet and hydraulic station of the machine are equipped with coolers, which can work continuously only by connecting the cooling circulating water；the outer diameter of the cooling circulating water inlet and outlet nozzles are all Φ26; all the inlet and outlet water are below the rear side of the main engine. This machine is composed of three parts: main engine, electric control and hydraulic pressure.
