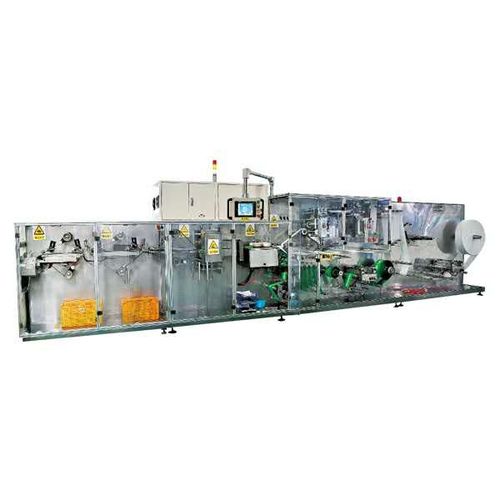

Wet wipe production line GM-082

PLC-controlled

Yield:≥98% Working efficiency:≥95% Nonwoven fabrics material:spunlace nonwoven fabrics,dust free paper, complex film.,etc,width was at 130-200mm Punch dimension:length:80-150mm(the longer the film was,the slower the production can be)width:40-100mm Three size:L8.15m * W1.55m * H2.00m DW:about 8000KG Installation power:about 19KW Power requirement:three phase four cables system(A,B,C,PE),380v/50HZ Air requirement :input pressure:0.5-0.8Mpa,air consumption≤300LPM The full servo driving By adapting Mitsubishi and Yaskawa motion controlling PLC and general linear servo driving system,it ensured a highly accurate package and stability. High production efficiency Non-stop,Non-slowing down while bonding materials,automatically elimilating folded waste and sending alarm while lacking wipes. Automatically eliminating wastes All folded waste including the raw materails can be torn out. Automatically counting stacker It runs a function of counting and stacking pouch as to customer's requirement. High hygienic safety character Adapting full closed loop medicine soup accurate humidification,the recyucling pollution were avoided Longer knife service time patened cutting knife technology triples the service time in comparison with the usual knives. Intelligent failure analysis when the machine breaks and material abnormal operation happens,it gave out relatively failure warning tips
