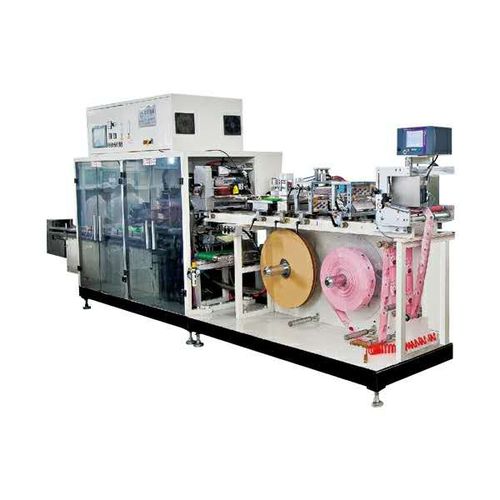

PLC-controlled packaging machine GM-088S

servo-drivenfilmfor wet wipes

yield:≥98% Working efficiency:≥90% Packing method:rolling film tapes,making the bags online Packing film:PE film,complex film,single layer thickness≤70μm Packing dimension:stacking height:20-60mm,single pad thickness≥1mm Three size:L5.5M * W1.5M *H2.0M DW:about 2500KG Installation power:about 14KW Power requirement:three phase four cables system(ABCPE),380v/50Hz Air requirement:input pressure:0.5-0.8MPa,air consumption≤300LPM The full servo driving By adapting Mitsubishi and Yaskawa motion controlling PLC and general linear servo driving system,it ensured a highly accurate package and stability. Patented bag-pushing structure tidiness and clear pouch was well piled up.it avoided situations like falling,angle folding,as well as pressing situation. Film length controlling to packaging the two size's soft products,it can achieve the accurate packaging film length controlling. The shortest rim charge Under the stable angle line situation,this machine shorten the length of the film rim to only 10mm. Automatically bonding with production line,no need of manual placing wipes. Intelligent failure analysis when the machine breaks and material abnormal operation happens,it gave out relatively failure warning tips
