Servo-driven packaging machine GM-089N
PLC-controlledfilmdiaper

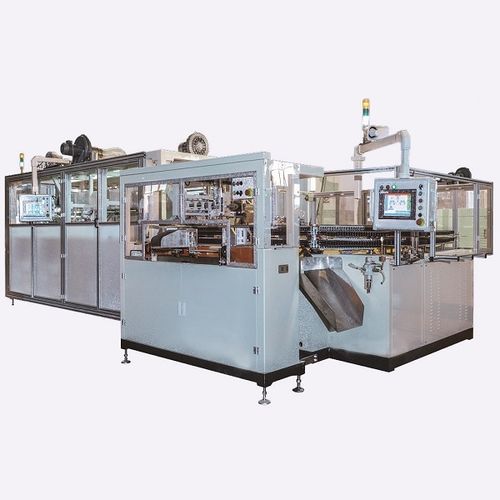

Servo-driven packaging machine - GM-089N - Xiamen Gachn Technology Co.,Ltd. - PLC-controlled / film / diaper
Servo-driven packaging machine - GM-089N - Xiamen Gachn Technology Co.,Ltd. - PLC-controlled / film / diaper
Add to favorites
Compare this product


Characteristics

Operational mode
PLC-controlled, servo-driven
Type
film
Applications
diaper, for hygiene products
Throughput

30 p/min

Description

Yield : ≥98% working efficiency : ≥92% Packaging method : Rolling film tape, making bags on line. Packaging material : PE or complex film, single thickness was 50-100μm Packaging dimension : L≤400mm ,W=200mm-400mm,H=90mm -200mm Three size : L4.7m×W3.3m×H2.7m DW : About 4200KG Installation power : About 19KW Power requirement : Three phase four wires system(A、B、C、PE),380V/50Hz Air requirement : Input pressure: 0.6-0.8MPa, air consumption≦200LPM The full servo driving By adapting Mitsubishi and Yaskawa motion controlling PLC and general linear servo driving system,it ensured a highly accurate package and stability. Angle line fault was highly controlled in ≤5mm,a highy stable angle line structure. Four pusher head design,it ensured a 40 bags/min speed when packaging the big size products. Intelligent failure analysis When the machine breaks and materail abnormal operation happens,it gave out relatively failure warning tips.
