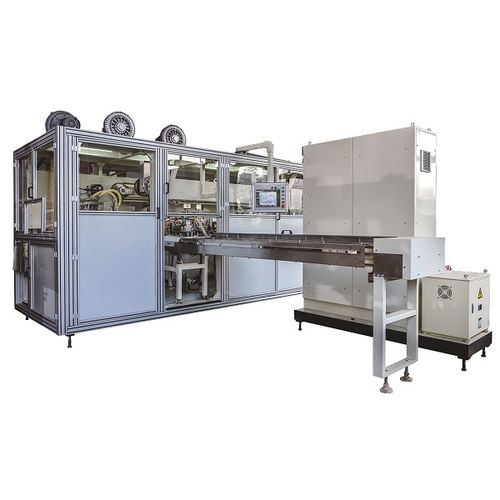

Servo-driven packaging machine GM-089NY

PLC-controlledtubular-bagbag

Yield:≥98% Working efficiency:≥92% Packaging method: using prefabricated bags, chinese bags and European bags Packaging film: PE or complex film, single layer thickness: 50-100μm Pouch dimension:L≤400mm，W=200mm~400mm，H=90mm~200mm 3D size:L4.7m×W3.3m×H2.7m Equipment DW: about 4200KG Installation power: about 20KW Power requirement: three phase four wires system(A、B、C、PE），380V/50Hz Air requirement: input pressure: 0.6-0.8MPa; air consumption ≦300LPM Full servo driving By adapting Mitsubishi and Yaskawa motion controlling PLC and general linear servo driving system, it ensured a highly accurate package and stability Angle line fault was highly controlled in 5mm, a highly stable angle line structure. Three pushing head design, it ensured a 40 bags/min speed when packaging the big size productions. Intelligent failure analysis, when the machine breaks and material abnormal operation happens, it gave out relatively failure warning tips
