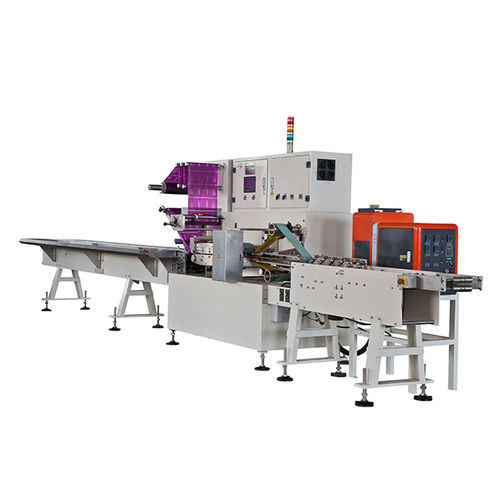

PLC-controlled packaging machine GM-083P

servo-drivenfilmbag

yield:≥98% Working efficiency:≥90% Packaging film:PE,POPP complex film Packaging dimension:spread pouch L(160mm-175mm) * W(100mm-130mm) one side double layer tissue:3-6 pcs,triple layer tissue:3-5pcs Three size:L7.5m * W 1.1m * H1.8m DW:about 2000KG Installing power:about 3.8KW(not including the glue machine) Power requirement:three phase five cables system(A、B、C、PE),380V/50Hz Air consumption:input pressure:0.5-0.8Mpa,Air consumption≤200LPM The full servo driving: By adapting TAIWAN YONGHONG motion controlling PLC and Panasonic servo driving system , it ensured a highly accurate package and stability Intelligent failure analysis: when the machine breaks and material abnormal operation happens, it gave out relatively failure warning tips. Saving material fee: Automatically finish the packaging ,sealing and cutting,gluing,folding bags,etc,it saves the bags and gluing cost Saving the labor force: It replace about 15 manual workers ,higly saved the cost
