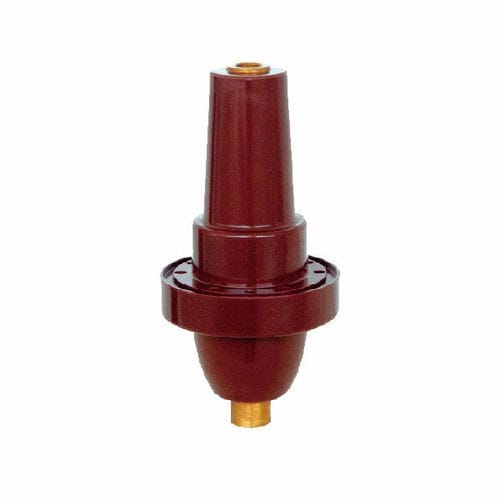

Epoxy resin insulator 6GDEP.220currentmedium-voltagehigh-voltage
Add to favorites
Compare this product
Characteristics
- Material
- epoxy resin
- Electrical characteristics
- current, medium-voltage, high-voltage
- Other characteristics
- for gas-insulated switchgear, for SF6-insulated switchgear
Description
Technical Parameters:
PF: 48kV/min, 79kV/min
PD: 13.2kVs=5pC, 26.4kV=s5pC
Rated current: 630A/1250A
Capacitance value: 18 ± 2PF
Color: Purplish Red
Sealingring: 092* 5 (inside diameter * line diameter)
Catalogs
6GDEP.220
1 Pages
