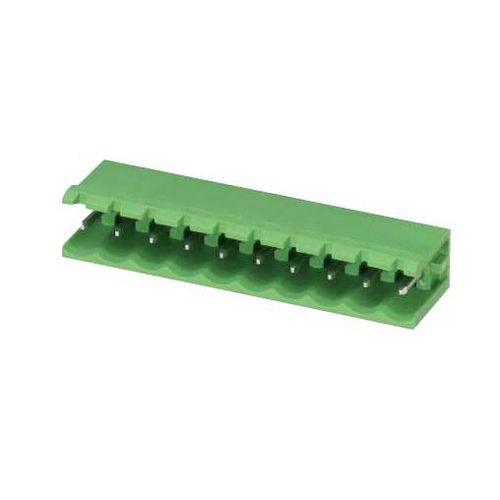

Plug-in terminal block HFLS1D seriesstandardcompact
Add to favorites
Compare this product
Characteristics
- Mounting
- plug-in
- Other characteristics
- standard, compact
- Current
8 A, 10 A, 12 A, 15 A, 17.5 A
- Nominal voltage
250 V, 300 V, 400 V
Description
● Standard needle type connector
● Without side panel
● The plug-in direction is parallel to PCB
Detailed parameters
Poles - 2~16
Pitch - 5.08mm
Rated Dielectric Strength - 2200Vac/min
Rated Withstand Pulse Voltage - 4kV
Ambient Temperature - -40℃~105℃
HFLS1D21-508
Features
● Standard needle type connector
● the plug-in direction of is vertical to PCB
● Without side panel
Detailed parameters
Poles - 2~16
Pitch - 5.08mm
Rated Dielectric Strength - 2200Vac/min
Rated Withstand Pulse Voltage - 4kV
Ambient Temperature - -40℃~105℃
HFLS1D23-381
Features
● Compact type socket with short needle gauge
● The plug-in direction is vertical to PCB
● With flange with thread
Detailed parameters
Poles - 2~24
Pitch - 3.81mm
Rated Dielectric Strength - 1500Vac/min
Rated Withstand Pulse Voltage - 2.5kV
Ambient Temperature - -40℃~105℃
