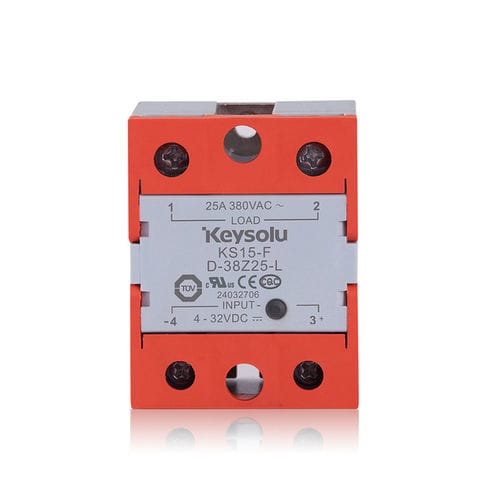

3VDC solid state relay KS15 SSR220VAC110VAC24VAC
Add to favorites
Compare this product
Characteristics
- Control voltage
- 3VDC, 220VAC, 110VAC, 24VAC, 380VAC
- Network
- single-phase
- Mounting
- for printed circuit boards
- Other characteristics
- AC output, with LED indicator
- Switching current
40 A
Description
KS15 SSR Panel Mount-AC Output FEATURES
● Built-in RC snubber circuit● Photoelectric isolation ● Triac output ● Removable protective cover ● Dielectric strength 4000V ● Zero-cross or random turn-on ● Optional LED status indicator
KS15 SSR Panel Mount-AC Output
KS15 is an AC output panel mount type SSR with alternative DC or AC control.
The DC input voltage range is 3~12VDC (without LED indicator) or 4~12VDC (with LED indicator).
And the AC input voltage offers three options: 24VAC, 110VAC and 220VAC.
Five output current ratings from 10A to 40A are available for selection as well as two output voltage options 240VAC and 380VAC.
The SSR is epoxy resin encapsulated with built-in RC snubber and it provides photoelectric isolation between the input and output with dielectric strength 4000V.
